Sheet Metal QC: 9 Checkpoints From Raw to Final

Release time:

2025-03-29

Ensuring precision in medical device sheet metal fabrication requires rigorous quality control across 9 stages, including raw material inspection, in-process checks, welding verification, and surface treatment, to guarantee product safety and compliance.

In precision-driven sectors like medical device sheet metal manufacturing, rigorous quality control (QC) is non-negotiable. This article outlines the 9-step inspection process—from raw material intake to final product delivery—to ensure compliance with medical-grade standards.

Stage 1: Raw Material Inspection
● Material Verification: Use spectrometers to test stainless steel (e.g., 304) for chromium/nickel content, critical for biocompatibility in medical equipment.
● Thickness Measurement: Check tolerance with micrometers to prevent dimensional errors in medical components.

Stages 2-4: In-Process Quality Checks
● Cutting Accuracy: Verify dimensions with calipers/contour projectors; inspect for burrs or burns.

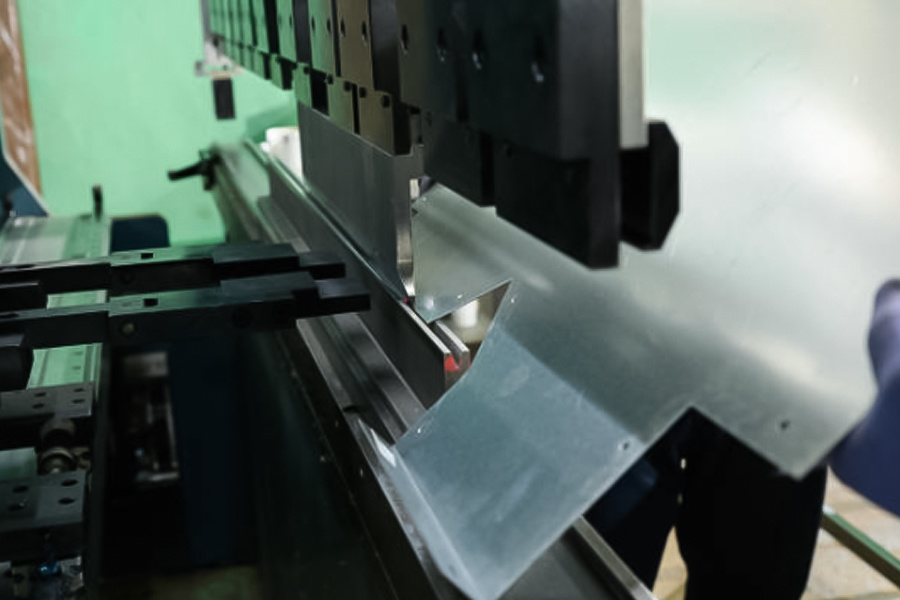

● Bending Precision: Ensure angle accuracy using digital protractors for medical device assemblies.
● Welding Integrity: Use ultrasonic testing to detect defects in critical medical parts like device housings.

Stages 5-7: Surface Treatment Evaluation
● Degreasing Validation: Water break tests ensure cleanliness for infection control.
● Coating Adhesion: Cross-cut tests and thickness gauges verify corrosion resistance in medical environments.
● Plating Durability: Salt spray chambers test resistance to chemicals in healthcare settings.

Stage 8: Final Assembly Measurement
● Coordinate measuring machines (CMM) validate overall dimensions for medical device fit and function.

Stage 9: Performance Testing
● Functional Tests: Simulate real-world use scenarios for medical equipment reliability.
● Environmental Tests: Vibration/humidity chambers ensure performance under extreme conditions.

FAQs
Q1: How critical is inspection equipment precision?
A: Vital—sub-millimeter errors in medical sheet metal can lead to life-threatening consequences.
Q2: How to balance QC costs and effectiveness?
A: Prioritize high-risk components with advanced tools (e.g., CMM) while using AI-based visual inspection for routine checks.
Q3: What’s the impact of new inspection technologies?
A: Laser scanning and AI-driven defect detection reduce human error and accelerate turnaround in medical manufacturing.
